Bus Bar 250a 4xM10 terminal. Both

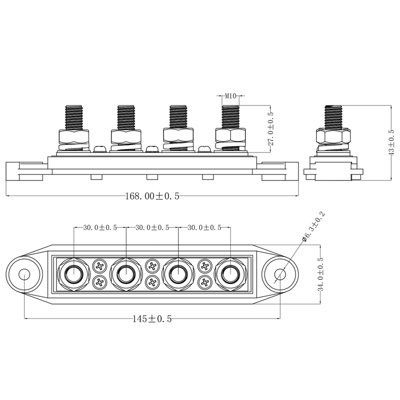

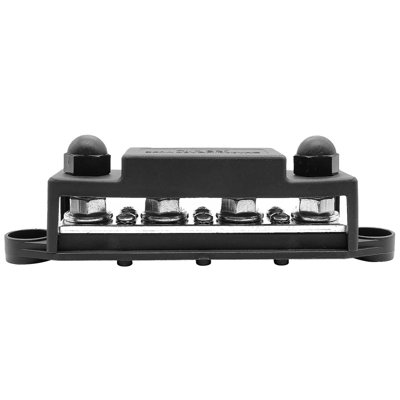

Bus Bar 250a 4xM10 terminal. Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment. We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover. This marine / automotive power distribution block can handle a continuous amperage Max 250A DC. The cover allows 180 degree wire lug installation and is suitable for most installation methods and end terminals. Specifications: Material: UL94-VO Rated, Glass Reinforced Thermoplastics Size: 168 x 34 x 43mm Weight: 220g Terminal posts: 4 x M10 (3/8in) Screw terminals: 6 Current, Max Continuous: 250A (DC)
