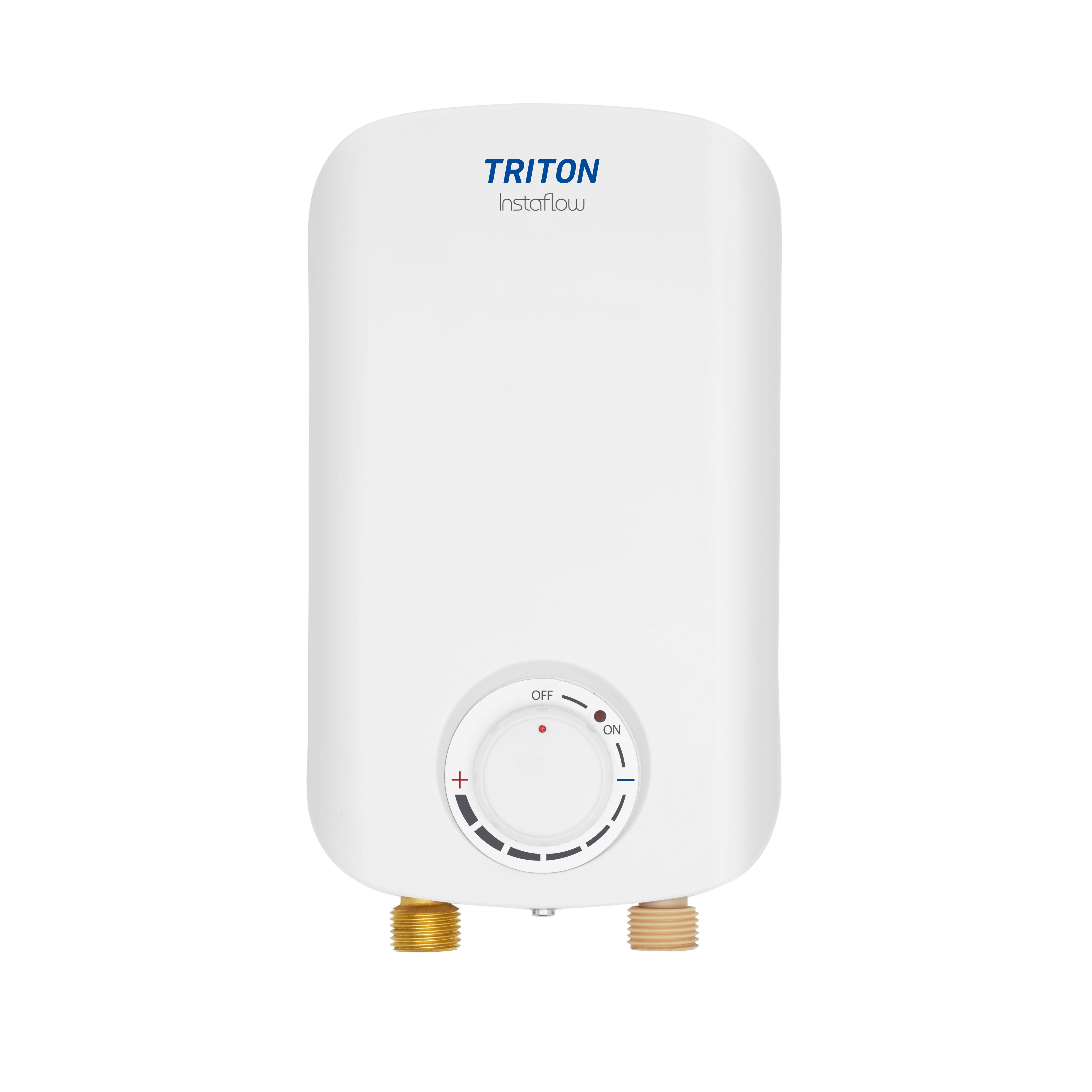

Triton Instaflow Multi-Point Undersink Water Heater 10.1kW
Heating & PlumbingAvailable for purchase from
£121.43
Buy From These Vendors
£121.43
£144.99
£145.80
£146.88
£148.31
£169.99
£194.34
Description

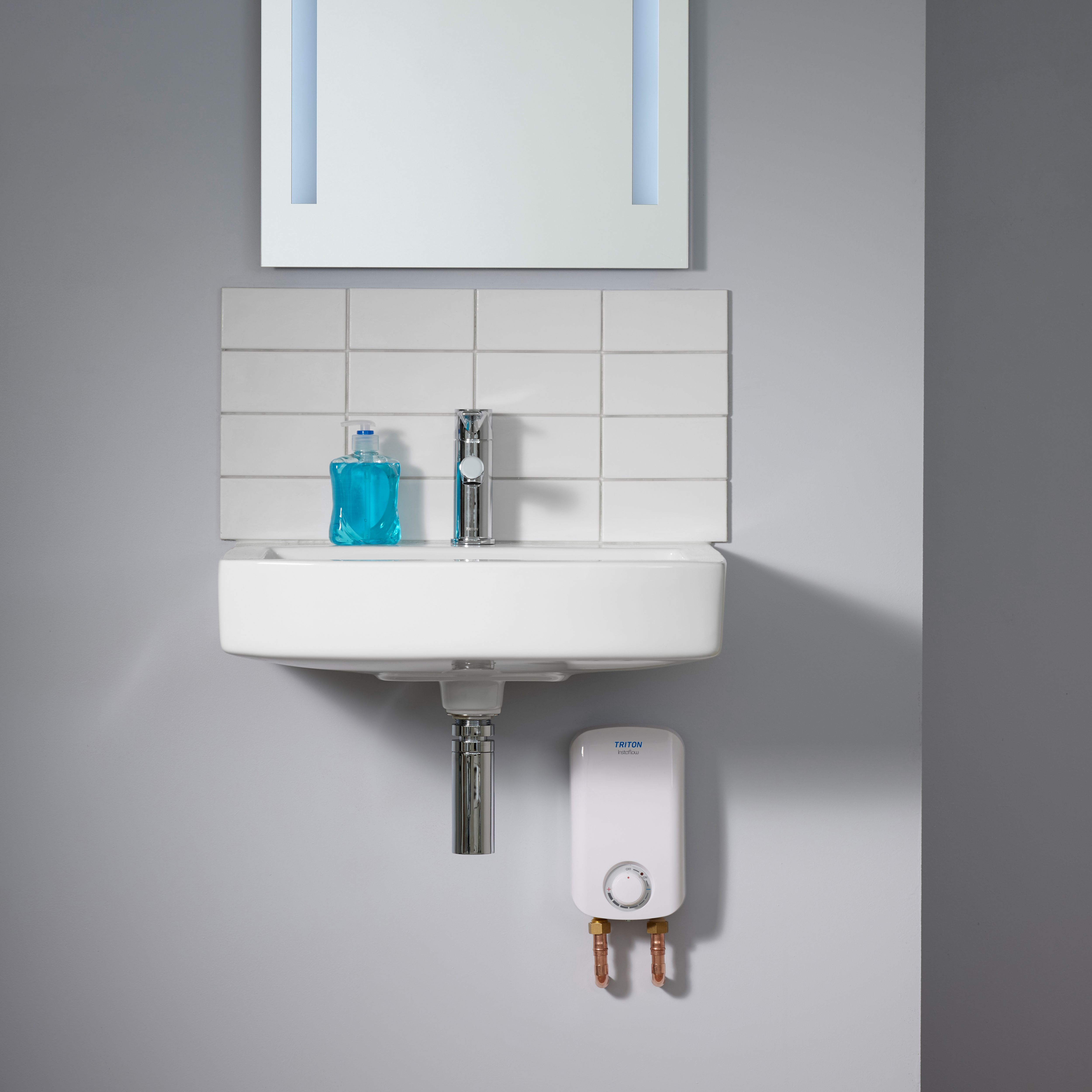

Compact unit for undersink installations as a space saving option and ideal for handwashing. Provides instantaneous hot water on demand up to 2 outlets. Power selection is smooth and continuous for optimum settings selection. No power is used when in standby operation.
Specifications
| Advisory Notice | only non-thermostatic mixer taps can be used the temperature of the water will depend on ambient water temperature and water flow through the unit the water flow rate of any instantaneous water heating device is affected by the temperature of the mains water |
| Body Material | abs body |
| Brand | triton |
| Connection Type | 1/2" bsp |
| Energy Rating | a |
| Fixings Supplied | fixings & fittings supplied |
| Green Star | saving energy at home |
| Green Star Claim | water heater with an energy efficiency rating of a or better |
| Ip Rating | ip25 |
| Manufacturer Guarantee | 1 Year |
| Max Flow Rate | 6 Ltr |
| Maximum Bar Pressure | 6 bar |
| Min Flow Rate | 2.7 Ltr |
| Minimum Bar Pressure | 0.6 bar |
| Model Name/no | instaflow |
| Mount Type | wall-mounted |
| Overheat Protection | overheat cut-out protection |
| Pack Size | 1 |
| Pieces In Pack/case | 1 |
| Power Output Watts/kw | 10.1 kW |
| Power Type | mains-powered |
| Power Voltage Supply | 240 V |
| Product Depth | 70 mm |
| Product Height | 300 mm |
| Product Type | multi-point undersink water heater |
| Product Width | 200 mm |
| Suitable System | suitable for cold mains supply only |
| Temperature Control Type | rotary heat & manual temperature control |
| Temperature Range | 29-68 °c |
| Thermal Cut Out Temperature | 55 °c |
| Total Product Weight | 3 kg |
| Water Entry Points | bottom only |
| Water Heater Application | instantaneous |
| Water Heater Location | undersink |
| Water Heater Product Type | electric water heaters |
| Pack Quantity | 1 |
| Adjustable Maximum Temperature | adjustable maximum temperature |
| Connection Size Imperial | ½" |
| Entry Point Water | right bottom |
| Maximum Heat Output | 46 kW |
| Maximum Operating Pressure | 6 bar |
| Maximum Temperature | 46°c |
| Minimum Operating Pressure | 0.6 bar |
| Model Name/number | 5.4 kW |
| Power Source | mains-powered |
| Product Weight | 1.9 kg |
| Water Heater Type | electric water heaters |
| Wattage | 5.4 kW |
