Rawlplug R-S1-RBL-M8/10/5 Rawlbolt Loose Bolt M8/10L (Bag 5) RAWM810LB

Name: Rawlplug R-S1-RBL-M8/10/5 Rawlbolt Loose Bolt M8/10L (Bag 5) RAWM810LB
Brand: rawlplug
SKU: SKU-99b9b34b
Availability: InStock

Doors & Door Fittings

Currently Unavailable

Add Product to Wishlist

Description

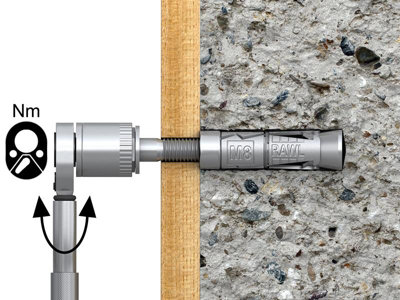

These Rawlplug Rawlbolt(r) Loose Bolts have the following specification: Anchor Diameter: 8mm External Diameter: 14mm Length: 65mm Fixture Max. Thickness: 10mm Hole Diameter: 9mm Hole Diameter in Substrate: 14mm Installation Torque: 15 Wrench Size: 13 Min. Hole Depth in Substrate: 55mm Min. Installation Depth: 50mm Min. Substrate Thickness: 100mm Min. Spacing: 40mm Min. Edge Distance: 60mm Pack Quantity: Bag of 5 The Rawlplug Rawlbolt(r) Loose Bolt is suitable for use in cracked and non-cracked concrete (ETA option 1)
